Rettob, Sarkol Risna Wati (2024) Pengaruh Kadar Serat Bambu Ori Terhadap Kuat Lentur Beton Mutu Tinggi Dengan Filler Batu Apung. Undergraduate thesis, Fakultas Teknik Universitas Merdeka Malang.

Preview	Text HALAMAN AWAL.pdf Download (2MB) | Preview

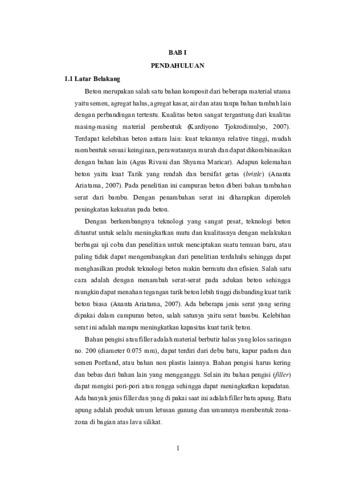

Preview	Text BAB I.pdf Download (2MB) | Preview
	Text BAB II.pdf Restricted to Repository staff only Download (2MB)
	Text BAB III.pdf Restricted to Repository staff only Download (2MB)
	Text BAB IV.pdf Restricted to Repository staff only Download (2MB)
	Text BAB V.pdf Restricted to Repository staff only Download (2MB)

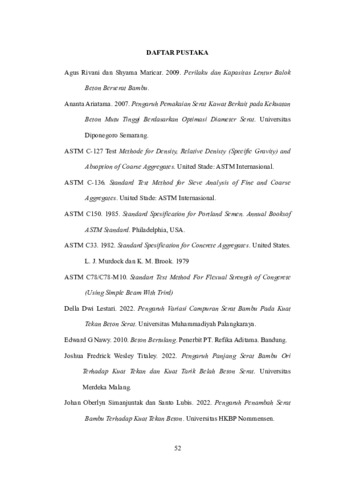

Preview	Text DAFTAR PUSTAKA.pdf Download (2MB) | Preview
Preview	Text HASIL CEK PLAGIASI.pdf Download (2MB) | Preview

Abstract

Concrete has a significant deficiency, namely having a weak tensile strength. Thisstudy aims to identify the effect of adding bamboo fiber as a mixture material toincreasing flexural strength.Ori bamboo is 2 cm long, 0.05-0.1 cm wide and 0.1 cm thick. Concrete beamsare divided into 2 types of specimens, without fiber and using fiber. Without fiber,3 specimens and concrete with fiber, 12 specimens. Fiber content 0%, 1%, 1.5%,2%, 2.5%. The test will be carried out when the concrete is 28 days old using aflexural beam testing tool (ASTM C-78).Based on the results of flexural strength with fiber content of 0%, 1%, 1.5%,2%, 2.5% respectively 6.17 Mpa, 7.43 Mpa, 8.13 Mpa, 9.73 Mpa, 8, 84 MPa. Thehighest value of flexural strength was in population 4 fiber concrete with 2% fibercontent of 9.73 MPa. While the lowest flexural strength value occurs in population2 of 7.43 MPa. From the results that have been done, the addition of ori bamboofiber has an effect on increasing the value of the flexural strength of concrete.

Actions (login required)

View Item
